Here we have some brake diagrams for you, so if you are sorting out your brakes this will help you put them back together again.

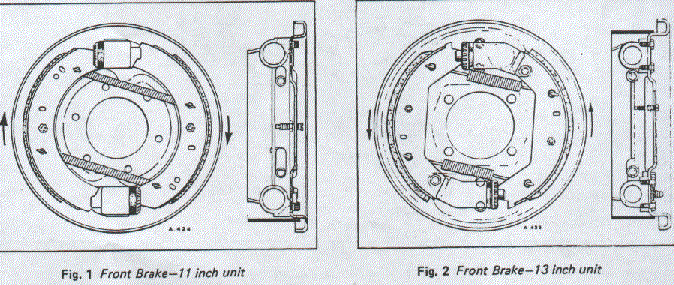

The first pic is of the front brakes on the s35 mk1 dodge50 (11 x 3) the s35 and some s46 had 11 inch brakes the rest had 13 inch.

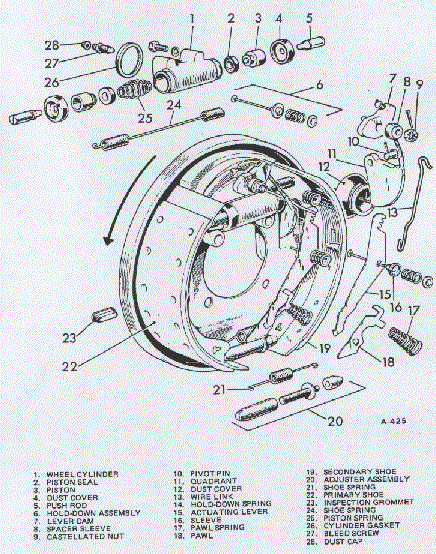

the second image shows the 11 inch front brakes in more detail and is very simular to the 13 inch.

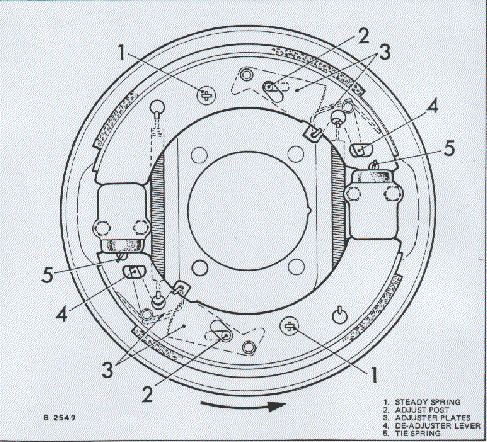

the third image is of the rear brakes on s35/s46/s56/s66 mk 1 and also mk2 s35/s46/s56/s66 which also had a bias spring added behind number 21 the bottom horizontal spring (not shown, the bias spring that is).

The rear brakes fitted to the S56 PSV and Some S66 are of a bigger size, the shoes are either 5 inch or 5 1/2 inch and have the same handbrake linkage as the S75 Rear Brakes, see image number 5 for what they look like.

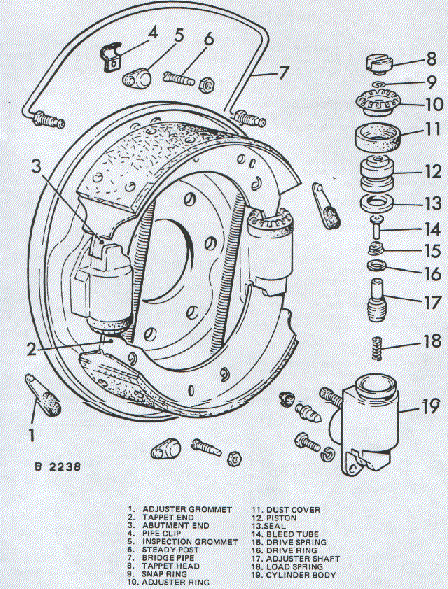

the forth image is for the front s75 mk1 and also the s75 mk2 with lockhead brakes

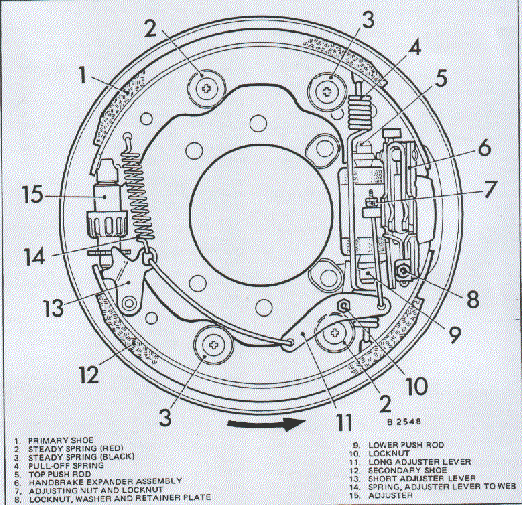

and the last image is for the( s56 Psv and S66 with the larger brake shoes) s75 rear brakes, note that the mk2 haulage s75 is the same and on the s75 psv there is also a bias spring fitted next to number 14 (bias spring not shown) .
