Our B75 Dodge50, Big Vern

S46, S56, S66, S75 +RB44























6.247 Perkins Engine Fuel system

Taken from The WSM3005 Dodge 50 workshop manual

Excluding Air filter Section.

All pages are NOT linked, this was a rush job for someone, so you will need to use your back button. Sorry.

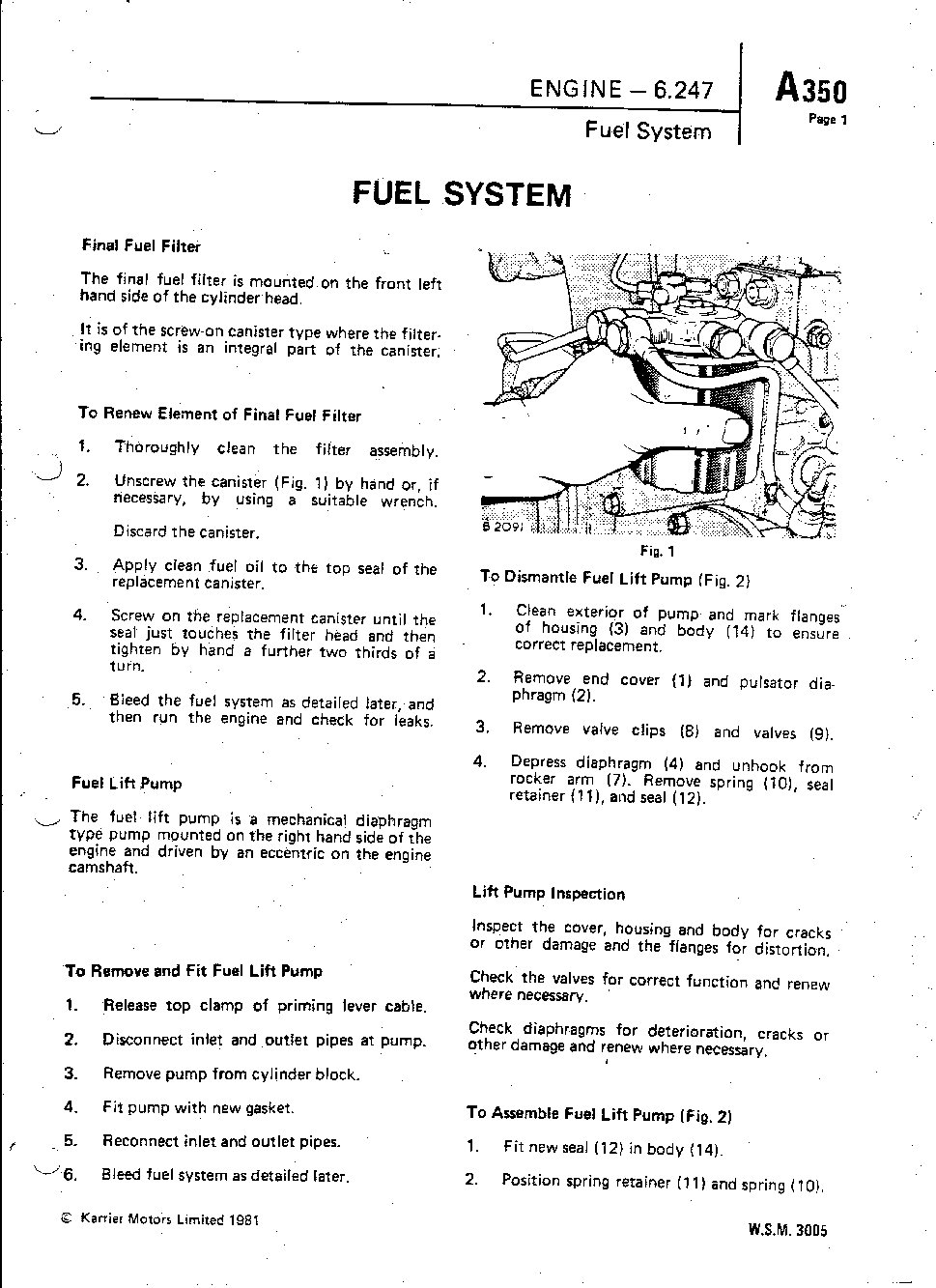

Page 1

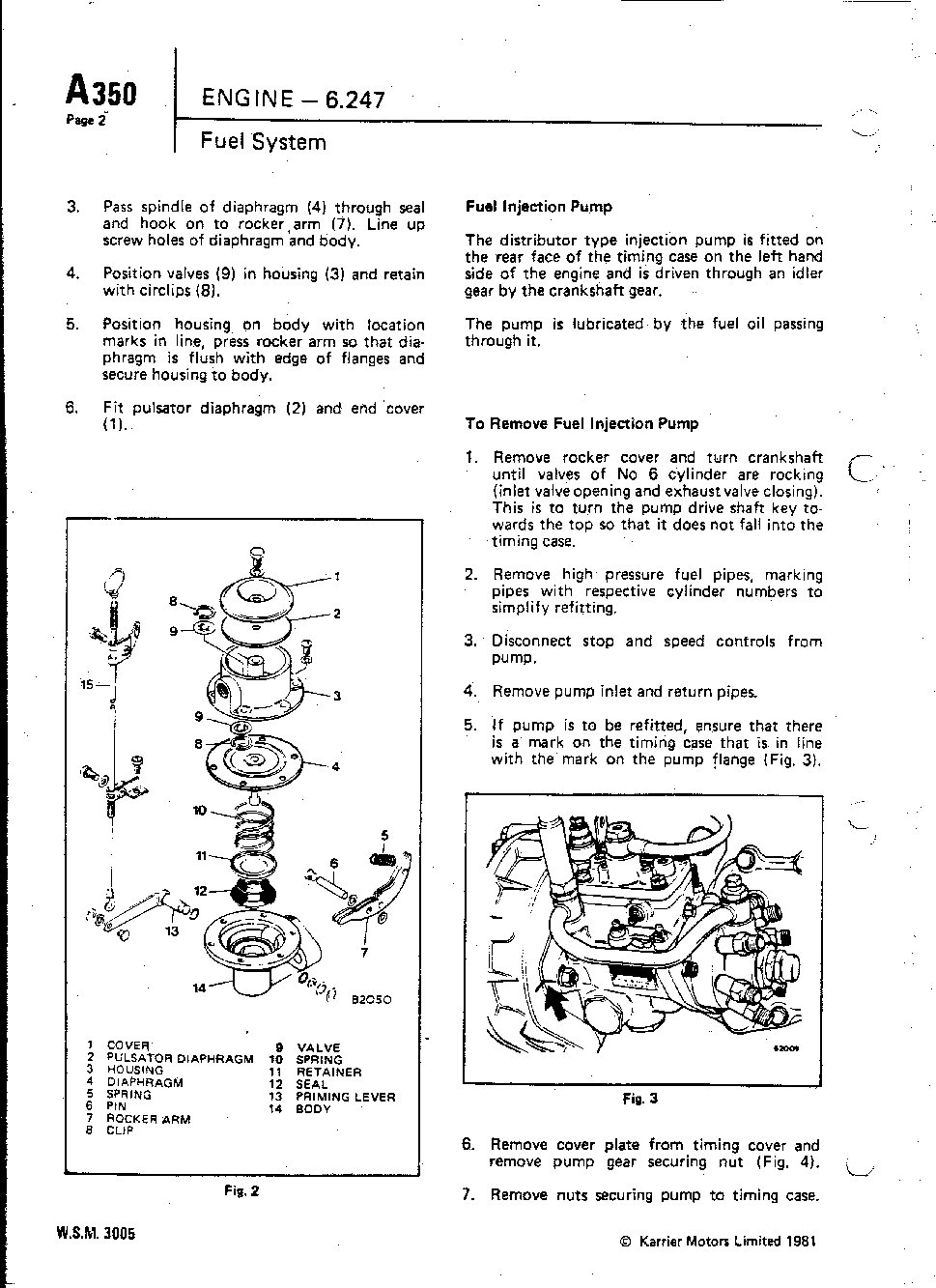

Page 2

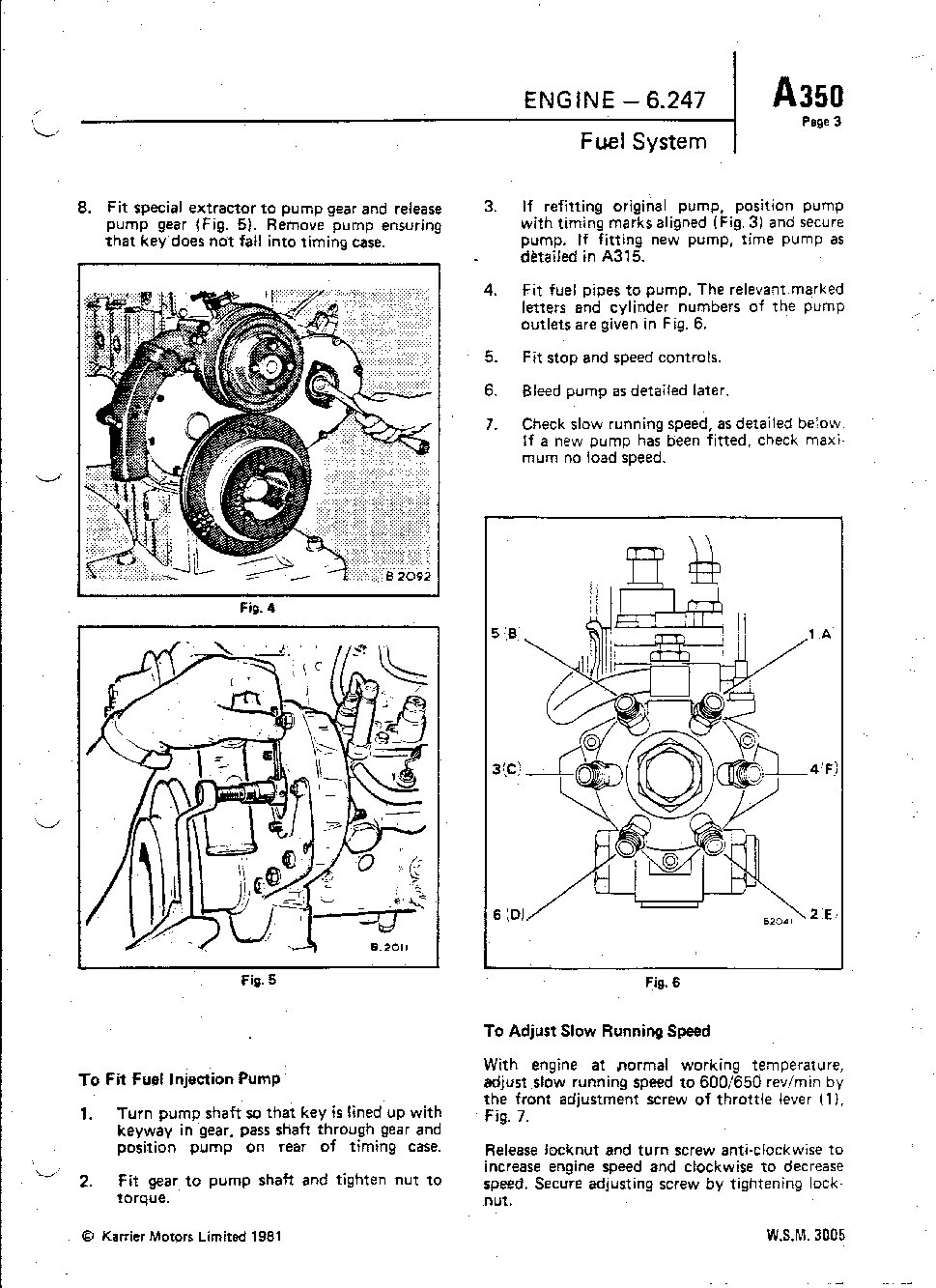

Page 3

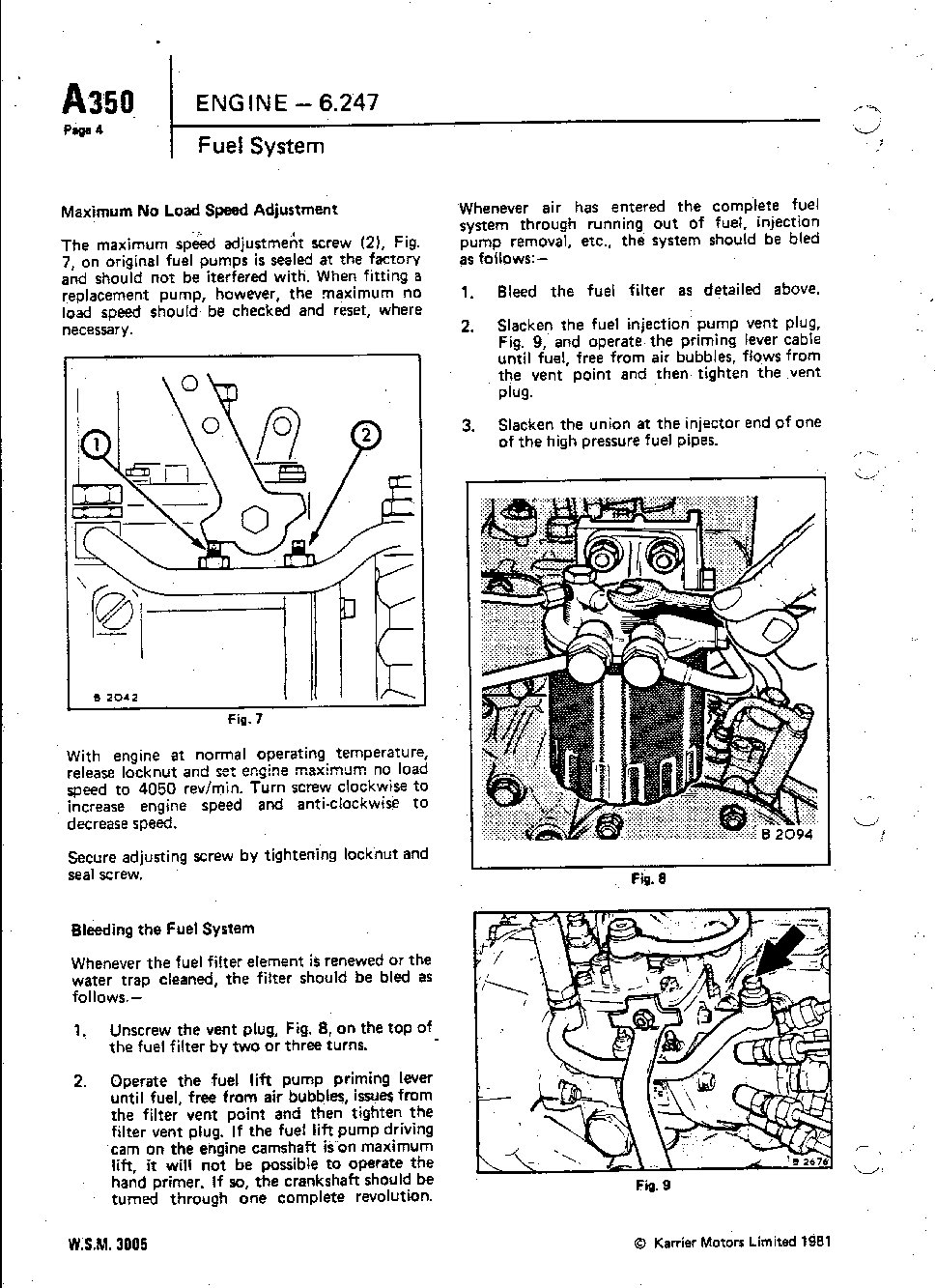

Page 4

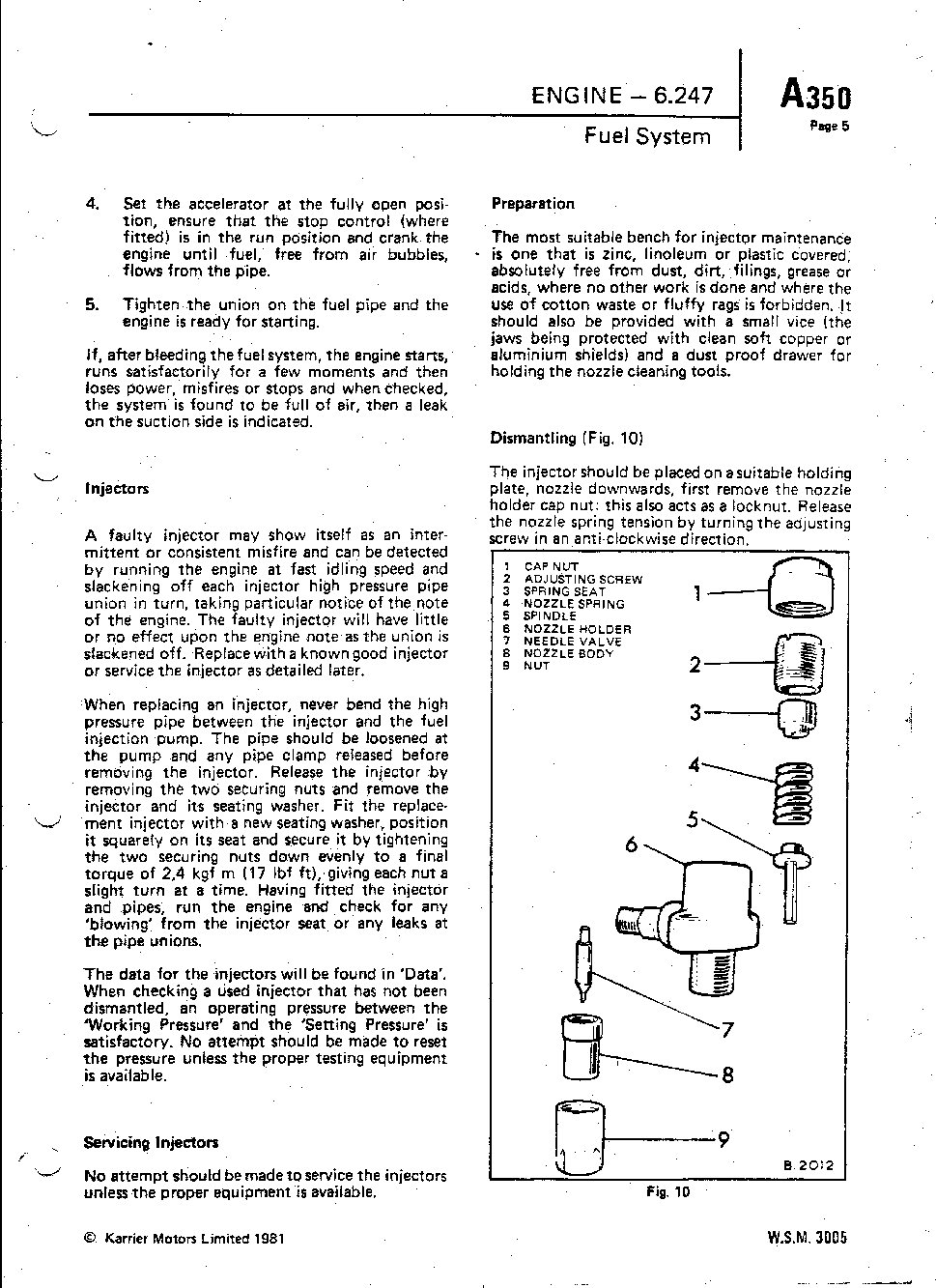

Page 5

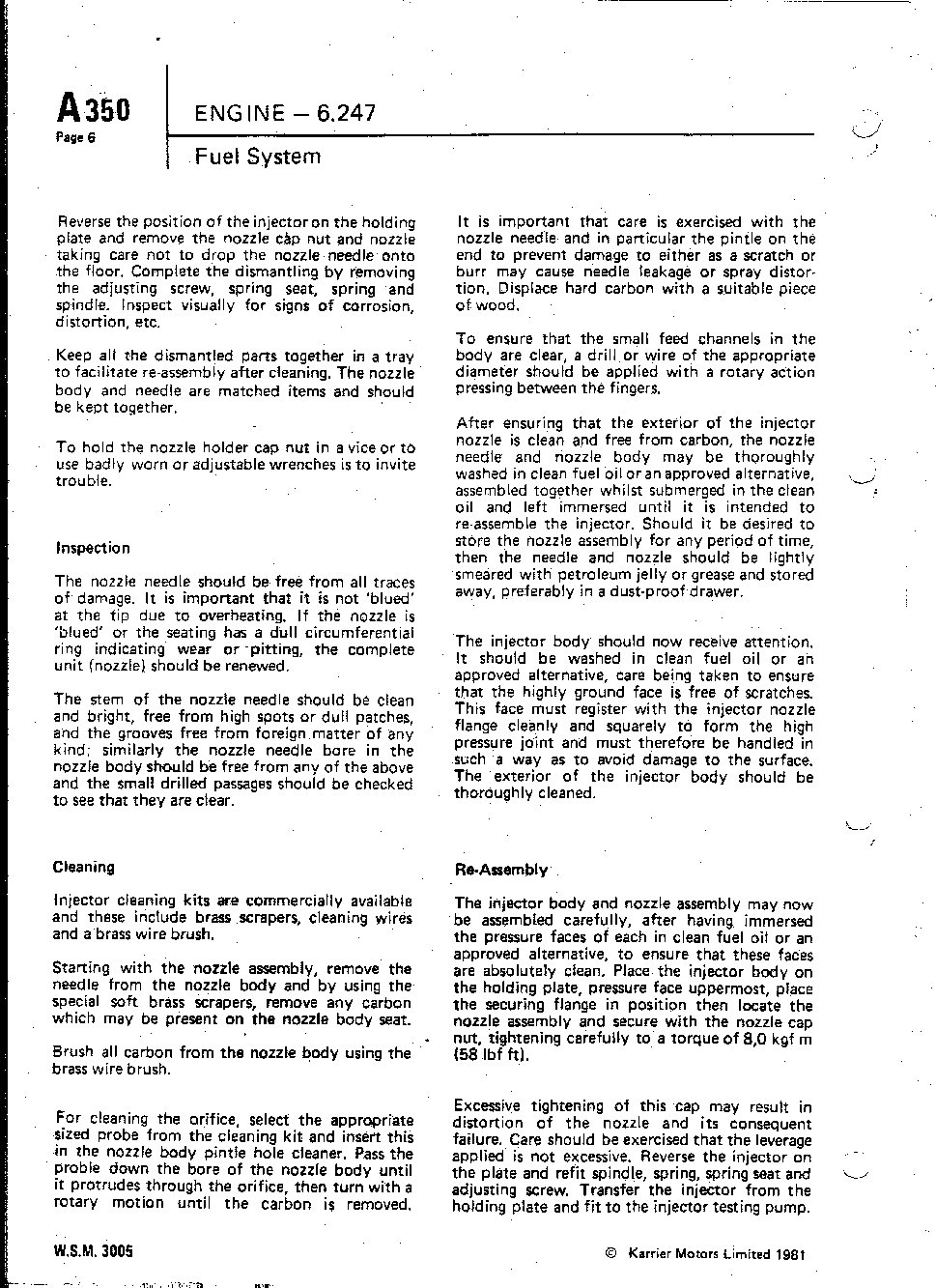

Page 6

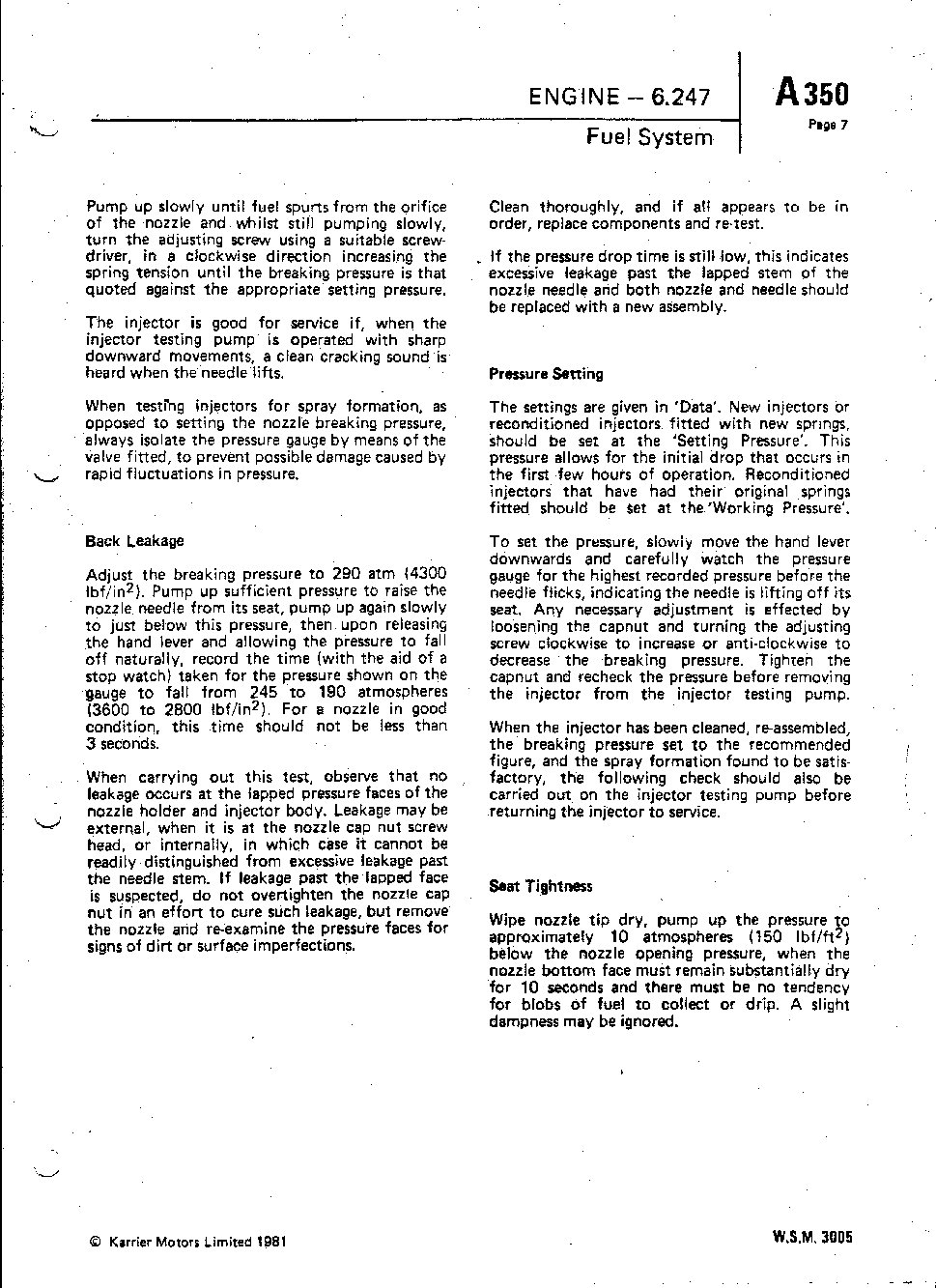

Page 7






Dodge 50 series vehicles S46, S56, S66, S75 RB44
