Take the rad to thermostat housing hose off if it still attached and then undo the wiring to the alternator, it is usually a 3 spade connector with a wire clip holding it in, otherwise it will be seperate wires attached which need to be removed.

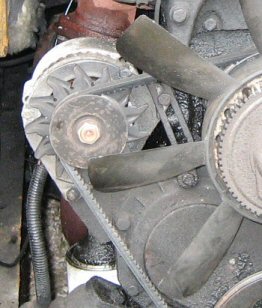

Fig 1

The alternator is attached with 3 nuts and bolts, the first is seen above and goes to the engine block and has the adjustment strap attached to it, the other two are at the bottom of the alternator and can be a bit awkward so be patient, when removed take the fan belt off and away.

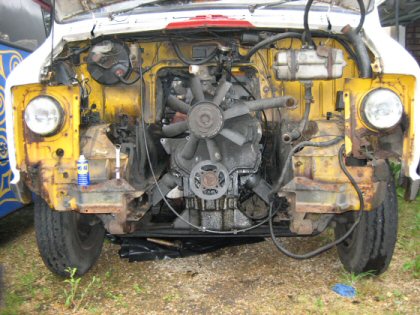

Fig 2

You can see the mounting points in the picture above with the alternator removed.



Recomended tools for the job.

Flat / cross head screwdriver, 11, 12 , 13, 14, 15mm spanners / sockets depending on what has been used to fit it.
